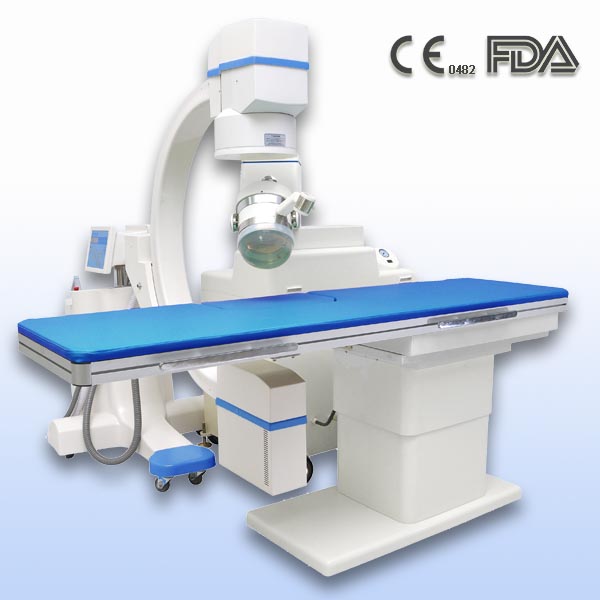

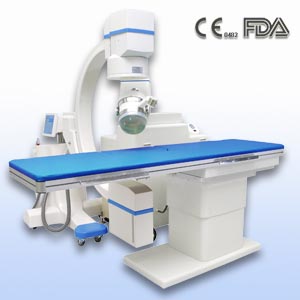

CS-2012A-3 ESWL

  • Product Details
  • Make an Inquiry
CS-2012A-3,a high-tech ESWL, reflects the model concept of Wide-Focus-Low-Pressure and combines the latest technology developed in extracorporeal lithotripsywith a compact and innovative design.
The CS-2012A-3 can be easily coupled with most currently used C-arms and ultrasound for accuratedual localization and real-time monitoring in the treatment of ESWL.

Excellent Effectiveness
With efficacy, flexibility, pain-free treatments and reduced treatment duration, the Quasi-static Binary Fragmentation by squeezing boosts the clinical effectiveness.

Convenience
CS-2012A-3 is easy to operate, no special equipment requirement. Adaptable to all currently used mobile X-Ray systems and ultrasound scanners.No need to replace electrodes or lens, 2 million shocks per shockwave generator guaranteed.

Mobility
Mobile and transportable.Suitable to almost alltherapeuticenvironment.

High Efficiency
With one of the highest Efficiency Quotients on the market i.e. stone-free rate of 86% after a follow-up of 3 months (W. EISENMENGER *), the QBF generator ensures excellent results.
* “THE FIRSTCLINICAL RESULTS OF “WIDE-FOCUS AND LOW-PRESSURE” ESWL”. W. Eisenmenger, X.X. DU et al, H Ultrasound in Med. & Biol., Vol. 28, No. 6, pp. 769 –774, 2002

Safety
With a maximum 10.5 KV and Adjustable Pressure Regulator,the safety and efficiency can be ensured.
Thanks to its unique interface design, the CS-2012A-3  is adaptable to most currently used X-Ray and ultrasound devices, reducing the capital investment required.

Specifications
•Range of discharge Voltage:7.0~10.5kV
•Discharge energy:50~100mJ
•Therapy distance:160mm
•Focus area cross section D:~±9mm
•Axial extent:~60mm
•Triggeringmode:manual, auto
•Lifetime of the coil:1 million, #12 million
•Therapy table movement:3D,#24D
•Extent of therapy table movements:10mm in Y direction;140mm in Z direction; 100mm in X direction;#3 ±15° Trendelenburg tilt


TV system
•1K * 1K High resolution CCD camera radiography system

Image storage
•>300 images storage, 8 frames
•Noise reduction
•Last image

Medical Grade Color Monitors
•Size 19”
•High resolution 1280*1024
•Auto brightness
•Auto contrast

C-arm
•#415kW generator
•±180° Rotation
•±115° Bracket rotation around horizontal axis
•±12.5° Rotation around vertical axis
•400mm Electro vertical movement
•200mm Electro backward-forward movement

{1# 2# 3# 4# are high-end optional, contact for details}
